| Bike Size | |||||
|---|---|---|---|---|---|
| Measurements | XS | S | M | L | XL |
| Frame Size (cm) | 49 | 52 | 53.5 | 56 | 59 |
| Frame Size (Feet/Inches) | 19.29" | 20.47" | 21.26" | 22.05" | 23.22" |
| Standard Bar (mm) | 400 | 420 | 420 | 420 | 440 |
| Standard Bar (Feet/Inches) | 15.75" | 16.54" | 16.54" | 16.54" | 17.32" |
| Standard Stem (mm) | 90 | 100 | 100 | 100 | 100 |
| Standard Stem (Feet/Inches) | 3.54" | 3.94" | 3.94" | 3.94" | 3.94" |
| Rider Height Estimate (cm) | 148 - 160 | 160 - 168 | 168 - 178 | 178 - 185 | 185 - 198 |
| Rider Height Estimate (Feet/Inches) | 4'ft 9" - 5'ft 3" | 5'ft 3" - 5'ft 6" | 5'ft 6" - 5'ft 9" | 5'ft 9" - 6'ft 1" | 6'ft 1" - 6'ft 6” |
| Top Tube Length (TT) (mm) | 525 | 540 | 555 | 565 | 580 |
| Top Tube Length (TT) (Feet/Inches) | 20.67" | 21.56" | 21.85" | 22.24" | 22.83" |
| Seat Tube Length (ST) (mm) | 485 | 520 | 545 | 560 | 585 |
| Seat Tube Length (ST) (Feet/Inches) | 19.09" | 20.47" | 21.46" | 22.05" | 22.64" |
| Chain Stay Length (RC) (mm) | 410 | 410 | 410 | 410 | 410 |
| Chain Stay Length (RC) (Feet/Inches) | 16.14" | 16.14" | 16.14" | 16.14" | 16.14" |
| Front Centre (FC) (mm) | 547 | 584 | 595 | 605 | 621 |
| Front Centre (FC) (Feet/Inches) | 22.32" | 22.99" | 22.43" | 23.82" | 24.44" |
| Bottom Bracket (BB) (mm) | 70 | 70 | 70 | 70 | 70 |
| Bottom Bracket (BB) (Feet/Inches) | 2.76" | 2.76" | 2.76" | 2.76" | 2.76" |
| Head Tube Length (A) (mm) | 105 | 130 | 135 | 150 | 175 |
| Head Tube Length (A) (Feet/Inches) | 4.13" | 5.11" | 5.31" | 5.91" | 6.89" |
| Head Tube Angle (HTA) | 71.5° | 71.5° | 72° | 72° | 72° |
| Head Tube Angle (HTA) | 71.5° | 71.5° | 72° | 72° | 72° |
| Seat Tube Angle (STA) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Tube Angle (STA) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Clamp Width (mm) | 50 | 50 | 50 | 50 | 50 |
| Seat Clamp Width (Feet/Inches) | 1.97" | 1.97" | 1.97" | 1.97" | 1.97" |
| Seat Mast Width (mm) | 85 | 85 | 85 | 85 | 85 |
| Seat Mast Width (Feet/Inches) | 3.35" | 3.35" | 3.35" | 3.35" | 3.35" |
| Seat Clamp Fore/Aft Adjustment (mm) | ±15 | ±15 | ±15 | ±15 | ±15 |
| Seat Clamp Fore/Aft Adjustment (Feet/Inches) | ±0.59" | ±0.59" | ±0.59" | ±0.59" | ±0.59" |
| Brake Mount - Flat Mount (mm) | 140 | 140 | 140 | 140 | 140 |
| Brake Mount - Flat Mount (Feet/Inches) | 5.51" | 5.51" | 5.51" | 5.51" | 5.51" |
| Drop Outs - Front Thru Axle (mm) | 12 x 100 | 12 x 100 | 12 x 100 | 12 x 100 | 12 x 100 |
| Drop Outs - Front Thru Axle (Feet/Inches) | 0.47" x 3.94" | 0.47" x 3.94" | 0.47" x 3.94" | 0.47" x 3.94" | 0.47" x 3.94" |
| Drop Outs - Rear Thru Axle (mm) | 12 x 142 | 12 x 142 | 12 x 142 | 12 x 142 | 12 x 142 |
| Drop Outs - Rear Thru Axle (Feet/Inches) | 0.47" x 5.59" | 0.47" x 5.59" | 0.47" x 5.59" | 0.47" x 5.59" | 0.47" x 5.59" |
| Stack (mm) | 505 | 527.5 | 535 | 550 | 575 |
| Stack (Feet/Inches) | 19.88" | 20.77" | 21.06" | 21.65" | 22.64" |
| Reach (mm) | 370 | 379 | 392 | 398 | 405 |
| Reach (Feet/Inches) | 14.57" | 14.92" | 15.43" | 15.67" | 15.94" |
Artistry, Precision, Devotion to Speed
Unmistakably AMG.
Pirelli P Zero tyres.
Limited Edition.

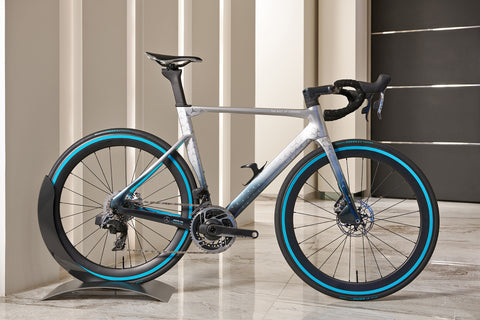

What's included
| Bike Weight 7.35kg (16.2lbs) |
| Bike Boxed Weight 14kg (30.8lbs) |

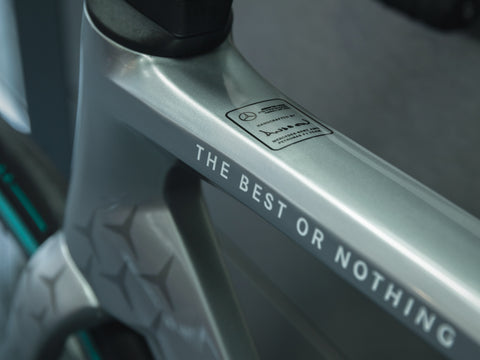

| Frame Carbon T1000/800/700-High Modulus carbon fibre |
| Forks UD Full Carbon Tapered With Motorsport Inspired Aero Fins |
| Drivetrain SRAM RED eTap AXS drivetrain electric shifting system. Delivered, ready to ride. |
| Tyres Pirelli P Zero Velo 25mm |
| Saddle Hand Made Alcantara Carbon Saddle Carbon Rails |
| Seatpost Carbon with Wide Clamp For Carbon Rails |
| Carbon Bar and Stem Combination 40/42/44cm Width With Stem 90/100mm Length |
| Computer Mount Carbon Fibre with bars integration (Garmin And Go Pro Compatible) |
Road bike geometry + sizing
