| Bike Size | |||||
|---|---|---|---|---|---|
| Measurements | XS | S | M | L | XL |
| Frame Size (cm) | 49 | 52 | 53.5 | 56 | 59 |
| Frame Size (Feet/Inches) | 19.29" | 20.47" | 21.26" | 22.05" | 23.22" |
| Standard Bar (mm) | 400 | 420 | 420 | 420 | 440 |
| Standard Bar (Feet/Inches) | 15.75" | 16.54" | 16.54" | 16.54" | 17.32" |
| Standard Stem (mm) | 90 | 100 | 100 | 100 | 100 |
| Standard Stem (Feet/Inches) | 3.54" | 3.94" | 3.94" | 3.94" | 3.94" |
| Rider Height Estimate (cm) | 148 - 160 | 160 - 168 | 168 - 178 | 178 - 185 | 185 - 198 |
| Rider Height Estimate (Feet/Inches) | 4'ft 9" - 5'ft 3" | 5'ft 3" - 5'ft 6" | 5'ft 6" - 5'ft 9" | 5'ft 9" - 6'ft 1" | 6'ft 1" - 6'ft 6” |
| Top Tube Length (TT) (mm) | 525 | 540 | 555 | 565 | 580 |
| Top Tube Length (TT) (Feet/Inches) | 20.67" | 21.56" | 21.85" | 22.24" | 22.83" |
| Seat Tube Length (ST) (mm) | 485 | 520 | 545 | 560 | 585 |
| Seat Tube Length (ST) (Feet/Inches) | 19.09" | 20.47" | 21.46" | 22.05" | 22.64" |
| Chain Stay Length (RC) (mm) | 410 | 410 | 410 | 410 | 410 |
| Chain Stay Length (RC) (Feet/Inches) | 16.14" | 16.14" | 16.14" | 16.14" | 16.14" |
| Front Centre (FC) (mm) | 547 | 584 | 595 | 605 | 621 |
| Front Centre (FC) (Feet/Inches) | 22.32" | 22.99" | 22.43" | 23.82" | 24.44" |
| Bottom Bracket (BB) (mm) | 70 | 70 | 70 | 70 | 70 |
| Bottom Bracket (BB) (Feet/Inches) | 2.76" | 2.76" | 2.76" | 2.76" | 2.76" |
| Head Tube Length (A) (mm) | 105 | 130 | 135 | 150 | 175 |
| Head Tube Length (A) (Feet/Inches) | 4.13" | 5.11" | 5.31" | 5.91" | 6.89" |
| Head Tube Angle (HTA) | 71.5° | 71.5° | 72° | 72° | 72° |
| Head Tube Angle (HTA) | 71.5° | 71.5° | 72° | 72° | 72° |
| Seat Tube Angle (STA) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Tube Angle (STA) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Clamp Width (mm) | 50 | 50 | 50 | 50 | 50 |
| Seat Clamp Width (Feet/Inches) | 1.97" | 1.97" | 1.97" | 1.97" | 1.97" |
| Seat Mast Width (mm) | 85 | 85 | 85 | 85 | 85 |
| Seat Mast Width (Feet/Inches) | 3.35" | 3.35" | 3.35" | 3.35" | 3.35" |
| Seat Clamp Fore/Aft Adjustment (mm) | ±15 | ±15 | ±15 | ±15 | ±15 |
| Seat Clamp Fore/Aft Adjustment (Feet/Inches) | ±0.59" | ±0.59" | ±0.59" | ±0.59" | ±0.59" |
| Brake Mount - Flat Mount (mm) | 140 | 140 | 140 | 140 | 140 |
| Brake Mount - Flat Mount (Feet/Inches) | 5.51" | 5.51" | 5.51" | 5.51" | 5.51" |
| Drop Outs - Front Thru Axle (mm) | 12 x 100 | 12 x 100 | 12 x 100 | 12 x 100 | 12 x 100 |
| Drop Outs - Front Thru Axle (Feet/Inches) | 0.47" x 3.94" | 0.47" x 3.94" | 0.47" x 3.94" | 0.47" x 3.94" | 0.47" x 3.94" |
| Drop Outs - Rear Thru Axle (mm) | 12 x 142 | 12 x 142 | 12 x 142 | 12 x 142 | 12 x 142 |
| Drop Outs - Rear Thru Axle (Feet/Inches) | 0.47" x 5.59" | 0.47" x 5.59" | 0.47" x 5.59" | 0.47" x 5.59" | 0.47" x 5.59" |
| Stack (mm) | 505 | 527.5 | 535 | 550 | 575 |
| Stack (Feet/Inches) | 19.88" | 20.77" | 21.06" | 21.65" | 22.64" |
| Reach (mm) | 370 | 379 | 392 | 398 | 405 |
| Reach (Feet/Inches) | 14.57" | 14.92" | 15.43" | 15.67" | 15.94" |

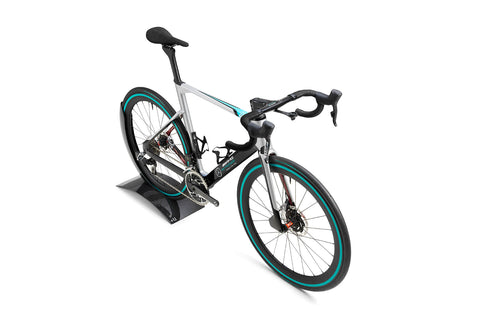

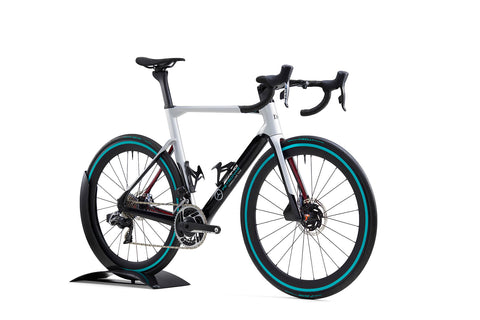

Ready to rumble. Mercedes-AMG F1 Team V13 Carbon Road bike.
Limited Edition 1/500.
Individually numbered, hand painted works of art.
F1 inspired aero.

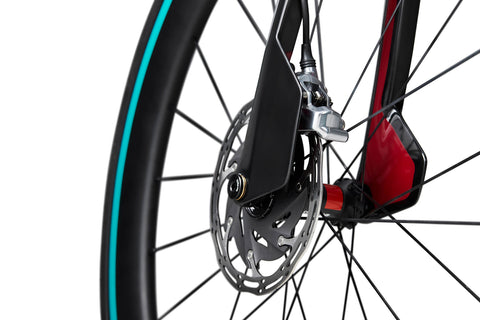

The unique aerofoil over the brake calliper is our signature feature.
Hand crafted Alcantara saddle.
Upholstered in Germany from the finest Alcantara, weighing a meagre 105 grams.
Unmistakably AMG.

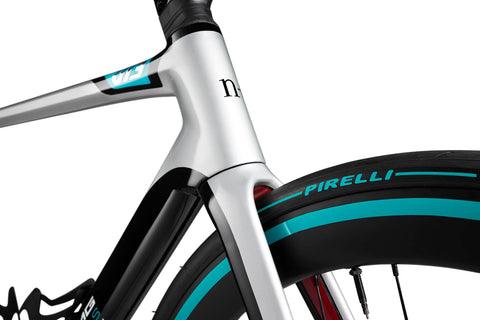

Pirelli P Zero tyres.

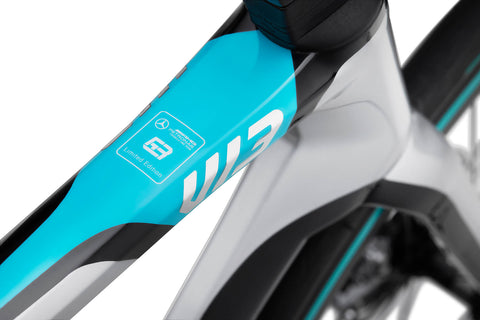

Limited Edition.
What's included
| Bike Weight 7.35kg (16.2lbs) |
| Bike Boxed Weight 14kg (30.8lbs) |
| Frame Carbon T1000/800/700-High Modulus carbon fibre |
| Forks UD Full Carbon Tapered With Motorsport Inspired Aero Fins |
| Drivetrain SRAM RED eTap AXS drivetrain electric shifting system. Delivered, ready to ride. |
| Tyres Pirelli P Zero Velo 25mm |
| Saddle Hand Made Alcantara Carbon Saddle Carbon Rails |
| Seatpost Carbon with Wide Clamp For Carbon Rails |

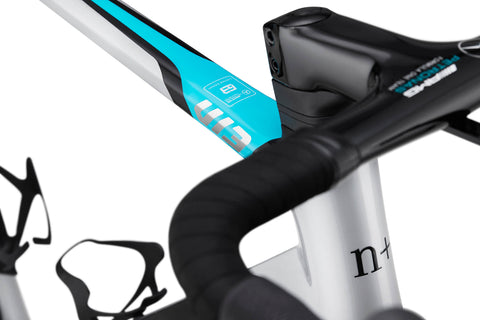

| Carbon Bar and Stem Combination 40/42/44cm Width With Stem 90/100mm Length |
| Computer Mount Carbon Fibre with bars integration (Garmin And Go Pro Compatible) |
Road bike geometry + sizing
